Applied to general purpose metal detection.
Features
● Multi-Frequency pre-set. Enhanced detection sensitivity.
●Automatic Phase-Angle Compensation. Improved compatible for product effective.
● Simplified product study. Automatic sensitivity and Phase-Angle setup
● Colorful Touch-Screen LCD Display and multi-language operation system
● 100 product parameters memory
● Real-time Flash Disk data storage
● Ethernet connection optional.
● Tool-Free fast convey belt de-assemble and wash
● Small dimension design. Easy to deploy
● IP66 optional.
Specifications

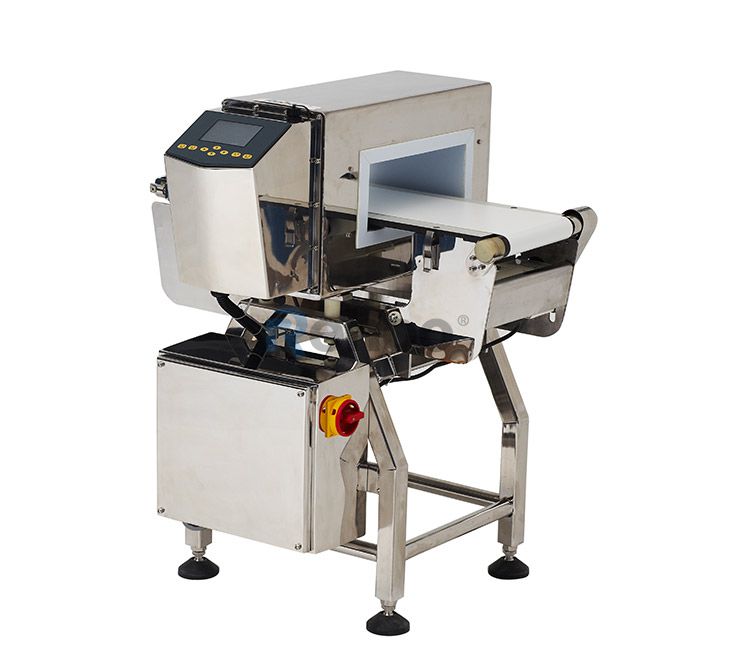

| Model | MDC-Symmetric II+ |
| Detection Theory | Balanced Coil |
| Detection Adjustment | Auto and Manual |
| Conveyor Speed | 25m/min(Adjustable) |
| Sensitivity Adjustment | Manual/Automatic |
| Rejection System | Air Blast, swing arm, arm pusher(optional) |
| Operation Way | Touch Screen |
| Alarm | Buzzer,Lamp(Optional) |
| Power | AC110V/220V 50 -60HZ |
| Rated Output | Appr.300W |
MDC-Symmetric II+ SERIES PRODUCT
| WidthxHeight | Sensitivity |
| 400mmx100mm | Fe¢0.8mm SUS¢1.5mm |
| 400mmx120mm | Fe¢0.8mm SUS¢1.5mm |
| 400mmx150mm | Fe¢1.0mm SUS¢2.0mm |
| 400mmx200mm | Fe¢1.2mm SUS¢2.5mm |
