Applied to Buscuit,Chocolate and Bakery production line for high sensitive metal detection.
Features
● Multi-Frequency and compound detection technolody, Enhanced detection sensitivity
● Very high resolution for Phase-Angle adjustment, Improved compatible for product effective
● Simplified product study, Automatic sensitivity and Phase-Angle Setup
● Colorful Touch-Screen LCD Display and multi-language operation system
● 100 product parameters memory.
●Real-time Flash Disk data storage
● Automatic retractable rejector which connect products smoothly
● Equiped with conveyor belt offset self-adjustment
● Both tiny roller ends which connect production line gapless
● Installed with NG collection bin
● Ethernet connection optional
Specifications
| Model | MDC-Symmetric W |
| Adjustment | Auto and Manual |
| Rejection device | Retractable rejection |
| Detection Size | 750mm(W)*100mm(H) |
| Belt Width | 680mm |
| Inspect ability | Ferrous,Non-ferrous, Stainless Steel |
| Speed of transporation | 5~70m/min(Adjustable) Suggest Speed:18~36m/min |
| Working direction | Left to right or right to left(face to operation panel) |
| Belt color | white |
| Belt Sort | Food industry used |
| Power supply,voltage | AC220V±10%; 50HZ |
| Alarm method | Buzzer or light(optional) |
| Operation language | Multi-national languages are optional |

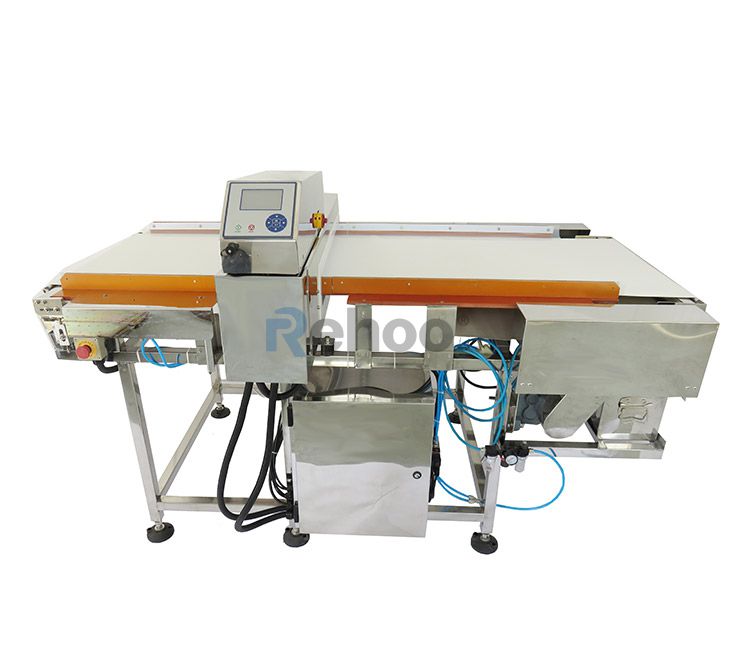

MDC-Symmetric W Series Product
| WidthxHeight | Sensitivity |
| 800mm*100mm | Fe¢0.8mm SUS¢1.5mm |
| 1000mm*120mm | Fe¢0.8mm SUS¢1.5mm |
| 1200mm*150mm | Fe¢0.8mm SUS¢1.5mm |
